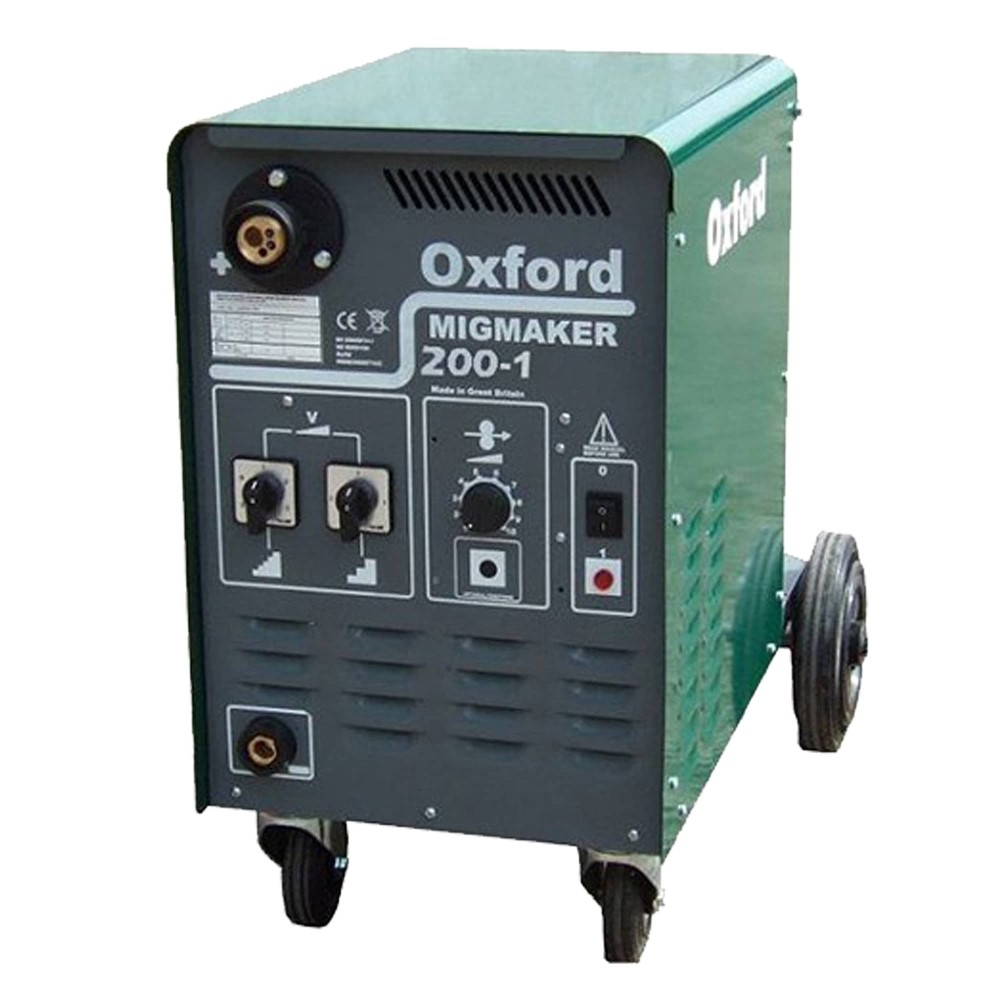

200-1 Single Phase MIG Welding Machine with Torch & Regulator
Features include:
- Supply Voltage: 230V
- Welding Range (amps): 20-200
- Duty Cycle - 35% @ 130amps
- Duty Cycle - 60% @ 100amps
- Voltage Steps: 12
- MIG Wire Range: 0.6-1.0mm
- Fuse Rating Slow Blow: 13A / 16A*
- Size App (ex rear wheels): 350W x 720L x 570H
- Weight approx: 53kg
Other features include:
- Heavy duty wire spool holder for 15kg or 5kg wire reels with mechanical brake to prevent overrun
- Designed for MIG welding mild steel, stainless steel and aluminium
- All metal geared wire drive system ensures perfect wire feeding of all sizes and types of wire
- Robust RCB fitted to precisely control motor speed and all functions including burn back etc
- Powder coated strong steel case with a substantial chassis fitted with quality wheels and castors
- All Oxford MIG machines come with a 3M mains input lead, 3M work lead, 1.5M gas hose
Warranty on MIGMAKER machine:
- 2 year warranty all items
- 5 year main transformer warranty ( the heart of the machine)
- 20 year minimum guarantee of spares availability
At the heart of this welder is a substantial copper wound transformer fitted with robust rotary switches and an overrated rectifier to give unbeatable durability. Also it is fitted with an industrial wire feed system and motor to guarantee virtually unstoppable feeding of all wires, making the welder more electrically efficient than other brands with an unbeatable standby power of just 25 watt and main transformer efficiencies of over 90%.
