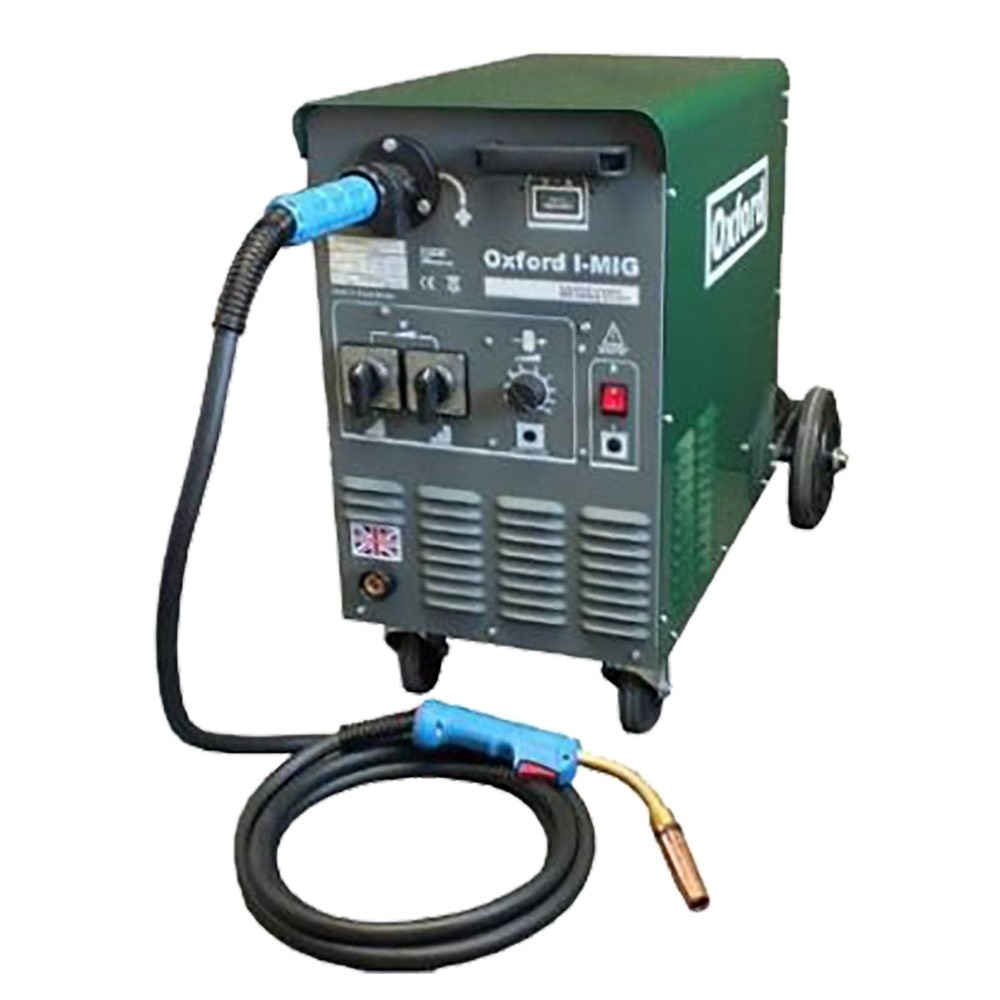

330-1 Single Phase I-MIG Welding Machine with Torch & Regulator (MIGI330-1)
I-MIG 330-1 - 230V Industrial compact MIG, c/w 4 roll drive. Ideal for medium to heavy duty fabrication, maintenance work, medium to heavy agricultural welding. Now with 20A min current. Weld everything from the thinnest car panel right up to small H beams & buckets etc.
Supply Voltage 230V
Welding Range (amps) 20-330
Duty cycle -35% @ 330 amps
Duty cycle -60% @ 250 amps
Voltage Steps 16
Mig wire range 0.6-1.2mm
Size app (ex rear wheels) 360W x 820L x 660H
Weight approx. 83kg
Input fuse (slow) 32A*
Min generator size* 6.8KVA
Features:
- Infinitely variable wire speed control, built in electronic motor brake & burn back with internal adjustment.
- Energy efficient design.
- Oxford Cap+ technology ensures a very smooth stable arc, with the best arc starting.
- Very low minimum of 20A on 330-1
